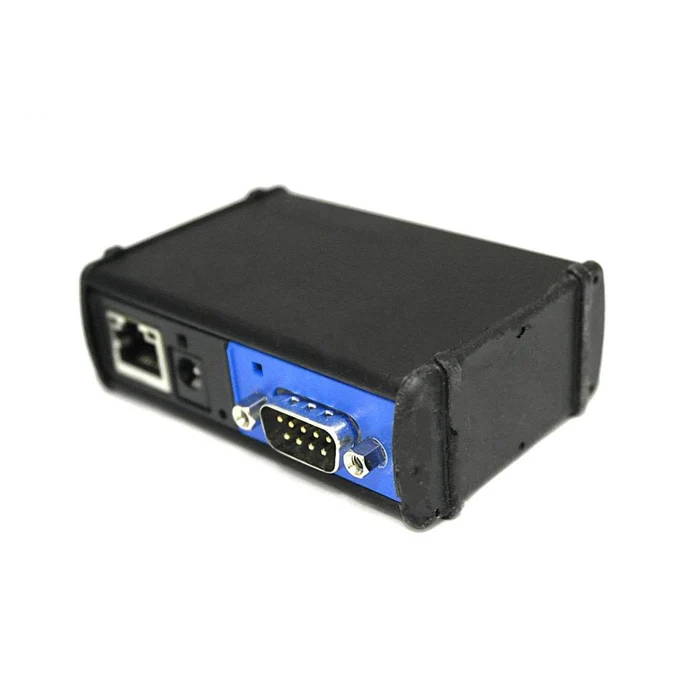

Global Cache IP2SL iTach TCP/IP to Serial (RS232)

£120.50 EX VAT

The iTach TCP/IP (Ethernet) to Serial/RS232 device provides a new level of automation and control flexibility, enabling device networking in Home or Commercial properties.
Global Cache’s IP2SL will seamlessly connect, monitor, and control Serial/RS232 devices over a network & internet.

2 in stock

SKU: IP2SL Category:

Description

FEATURES

  • RS232 from 1200 baud to 57.6K baud
  • Male DB9
  • On board web server for quick, easy setup and configuration
  • Allows up to 8 simultaneous connections to any smart device
  • Flash upgradeable to accommodate future upgrades in the field
  • One Serial/RS232 port offering bi-directional control
  • Can draw power from USB Port

SPECIFICATION

  • Power Input (3 Configurations): -5 to 16V DC@300mA (90 to 230V wall power adapter included) International plugs available -USB power cable draws power from USB port (included) -Power over Ethernet (PoE) on -P models.
  • Setup: Integrated web server for easy configuration. Configure through TCP/IP set up commands.
  • iHelp Setup Utility: Downloadable iHelp software simplifies network discovery and setup.
  • IR Learning Utility: Downloadable iLearn software allows for the capture and playback of IR commands for control uses.
  • Network Connection: RJ45 connector 100/10 Mbits Ethernet protocol / Adheres to TCP, DHCP and HTTP standards.
  • LED Indicators: Power and all connectors to indicate activity.
  • IR and Sensor Interface (IP2IR Only): Connector: 3.5mm stereo jack / 3 Independent selectable IR outputs or sensor inputs / 3 IR emitters included / 1 IR blaster included (supported on 3rd IR port).
  • Serial/RS232 (IP2SL Only): Male DB9 Connector 1200 baud to 115.2 Kbaud data rates supported / Odd, Even, and None parity settings Bi-directional with hardware RTS/CTS flow control.
  • Contact Closure/ Relay (IP2CC Only): 3 Integrated contact closure relays w/ transient voltage suppression / Pluggable screw terminal 24V AC/DC@.5A N.O. contact / Allows for isolated switching of low voltage wiring.
  • Device Packaging: Aluminium extrusion case, rubber end caps and plastic face plates.
  • Dimensions (LxWxH): 3.25“ x 2.25“ x 1.25”.
  • Weight: 3.25 oz. (6 oz. with power supply).
  • Certifications: FCC (Part 15, Class B), C-tick, CE RoHs compliant.
  • Warranty: Two year limited warranty.

What’s in the Box

  • 1 x IP2SL Module
  • 1 x Power Supply
  • 1 x Quick Start Guide
